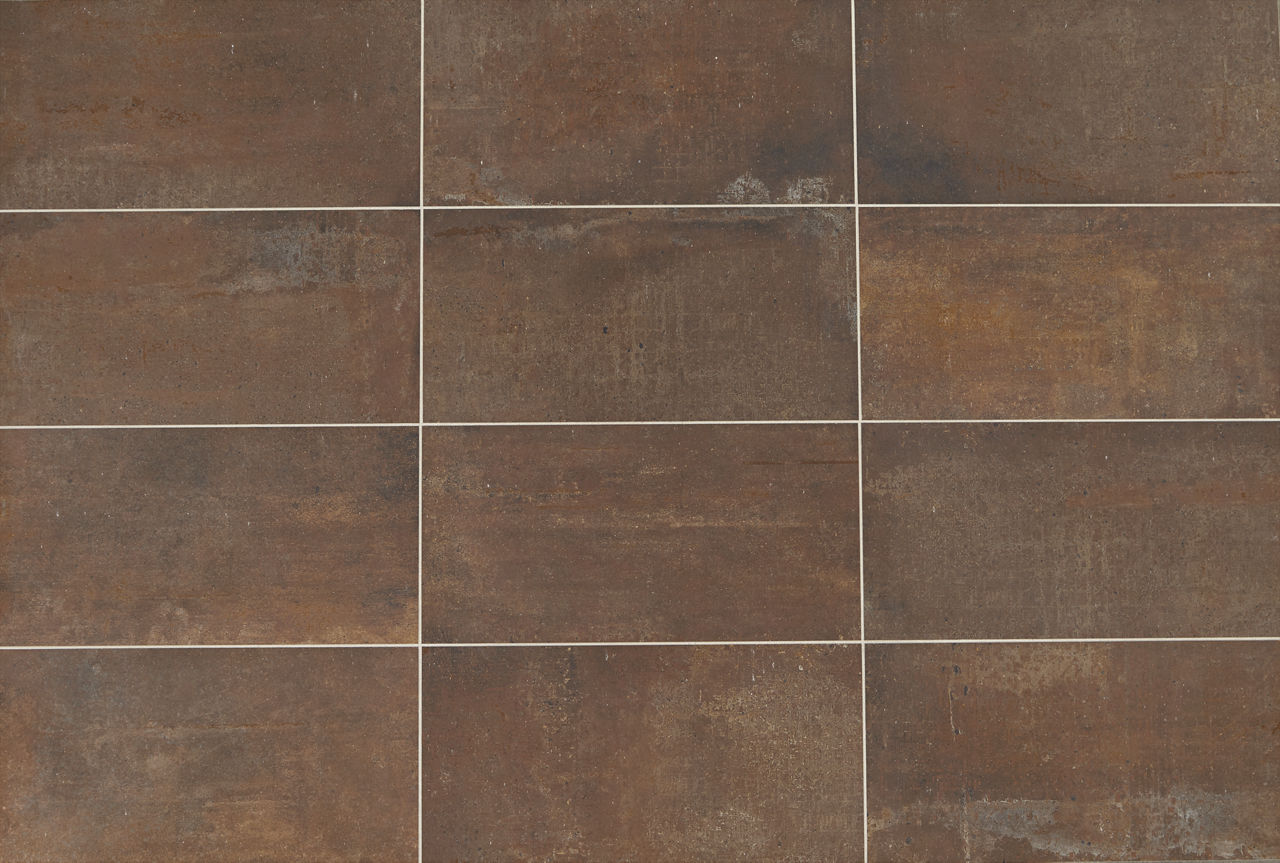

Union is an authentic and bold interpretation of stained and worn concrete factory floors reminiscent of the industrial era.
Roll over image to zoom
Additional Colors
Available Shapes and Sizes
:
UN04
:
5/16
:
12X24, 24X48
:
Matte
:
V3: High
:
United States
:
UN04
:
5/16
:
2X3
:
Matte
:
V3: High
:
Mexico
Application
| Target Dcof Wet | Suitable | |
|---|---|---|
| Dry & Level - Interior Floor | N/A | ✔ |
| Wet & Level - Interior Floor | ≥0.42 | ✔ |
| Shower Floors (Residential or Light Commercial) | ≥0.42 | |
| Exterior Floor Applications (including pool decking & other wet areas with minimal footwear) | ≥0.60 | ✔ |
| Ramps & Inclines | ≥0.65 | |
| Walls/Backsplashes | N/A | ✔ |
| Countertops | N/A | ✔ |
| Pool Linings | N/A | ✔ |
| 1/8" | ||
|
● Manufacturer Advisory: All tile is measured by the DCOF AcuTestTM method. Tiles with DCOF values less than 0.42 are not recommended for use in areas with wet or slippery conditions. For more information, see ANSI standard A137.1 section 6.2.2.1.10, available at www.tileusa.com. |
||
|
No additional notes |
||
Technical Specifications
| Test Method | Result | |
|---|---|---|
| Water Absorption | ASTM C373 | < 0.5 |
| Breaking Strength | ASTM C648 | > 275 lbs |
| Scratch Hardness | ASTM MOHS | 8 |
| Chemical Resistance | ASTM C650 | Resistant |
Durability Chart
| Floor Surface Wear Resistance |
|---|
| 1 - Residential Bathrooms |
| 2 - All Residential Areas |
| 3 - All Residential / Light Commercial |
| 4 - All Residential / Commercial |
Available Trim (3)
Bullnose
3X24
Shape Number: P43F9
Cove Base
6X12
Shape Number: P36C9
Cove Base Outcorner
1X6
Shape Number: PC36C9
