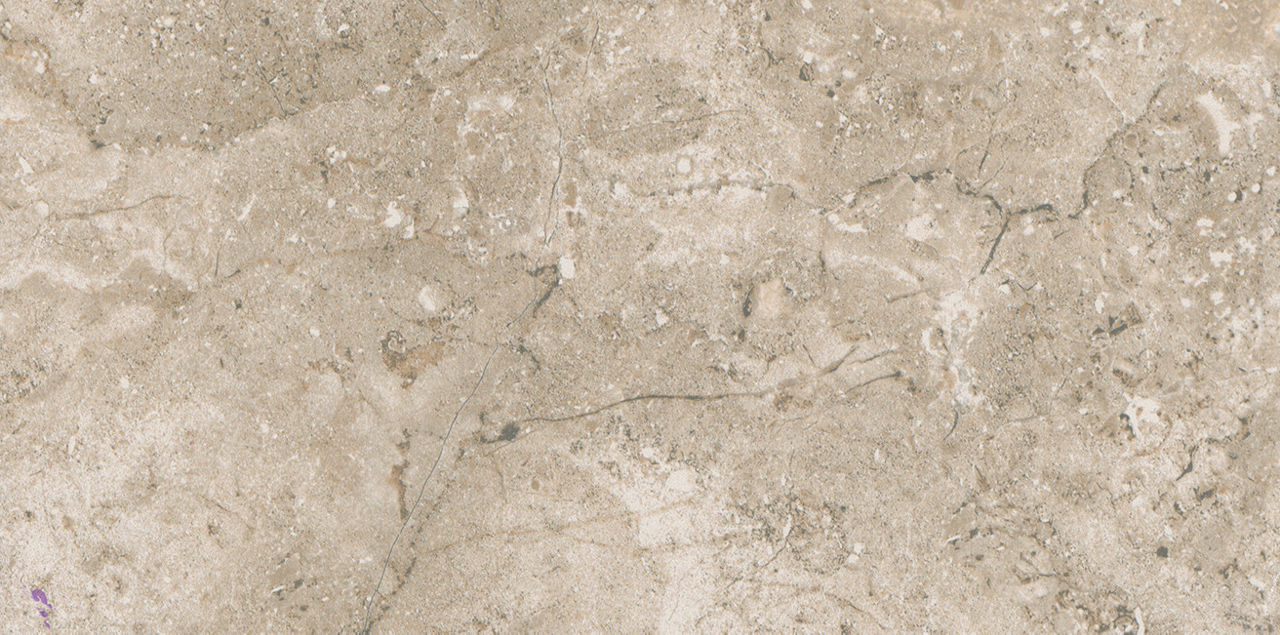

Laurel Heights™ porcelain collection is a realistic interpretation of refined travertine, features floor, wall and mosaic combinations, that flow with any design.
Roll over image to zoom
Additional Colors
Available Shapes and Sizes
:
LH96
:
5/16
:
12X12, 18X18
:
Matte
:
V3: High
:
United States
:
LH96
:
5/16
:
12X24
:
Matte
:
V3: High
:
United States
:
LH96
:
1/4
:
2X4
:
Matte
:
V3: High
:
Mexico
Application
| Target Dcof Wet | Suitable | |
|---|---|---|
| Dry & Level - Interior Floor | N/A | ✔ |
| Wet & Level - Interior Floor | ≥0.42 | ✔ |
| Shower Floors (Residential or Light Commercial) | ≥0.42 | ✔ |
| Exterior Floor Applications (including pool decking & other wet areas with minimal footwear) | ≥0.60 | |
| Ramps & Inclines | ≥0.65 | |
| Walls/Backsplashes | N/A | ✔ |
| Countertops | N/A | ✔ |
| Pool Linings | N/A | ✔ |
| 1/8" | ||
|
● A DCOF value of =0.42 is the standard for tiles specified for level interior spaces expected to be walked upon when wet, as stated in ANSI A137.1-A326.3. For more information about DCOF and the DCOF AcuTestTM, americanolean.com/DCOF. |
||
|
No additional notes |
||
Technical Specifications
| Test Method | Mosaic Tile | Floor Tile | |
|---|---|---|---|
| Water Absorption | ASTM C373 | < 3.0 | < 0.5 |
| Breaking Strength | ASTM C648 | > 250 lbs | > 275 lbs |
| Scratch Hardness | ASTM MOHS | 8 | 8 |
| Chemical Resistance | ASTM C650 | Resistant | Resistant |
Durability Chart
| Floor Surface Wear Resistance |
|---|
| 1 - Residential Bathrooms |
| 2 - All Residential Areas |
| 3 - All Residential / Light Commercial |
| 4 - All Residential / Commercial |
Available Trim (3)
Bullnose
3X12
Shape Number: P43C9
Bullnose 12" Side
3X12
Shape Number: S43C9W
Bullnose Corner
3X3
Shape Number: SN4310
